Platforms

At PENKO we can design and manufacture custom-made platforms of any size and weighing capacity which are suited to your requirements. Our wide range of platforms come in various sizes and weights, with dimensions from 300mm x 300mm to 2m x 3m and weight capacities from 3kg to 6000kg. A platform is the combination of a framework or a top and bottom frame, one load cell or four load cells and a cover. As the load cell / cells are integrated, it offers a measuring system that is immediately ready for use. PENKO's range of industrial platforms includes dimensions from 150mm x 150mm up to 4 x 1.5m and weighing capacities from 0 – 3kg up to 0 – 6.000kg. The finish takes in stainless steel or mild steel, coated, place.



B4C Platforms

PAINTED ALLOY STEEL OR STAINLESS STEEL


B4C Range

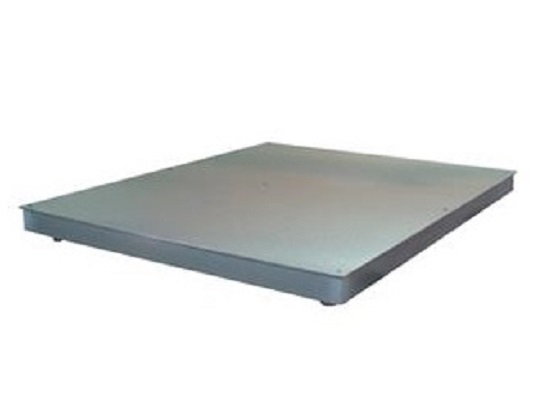

A floor platform with four integrated shear beam load cells.

  • platform sizes: 800 x 800 mm up to 4000 x 1500 mm
  • weighing capacities: 0 – 300 kg up to 0 – 6.000 kg
  • material: alloy steel or stainless steel frames and stainless steel cover



Accessories:
  • ramp for platform(s)
  • frame of angular steel shape with root feet to end the building of the ditch
  • galvanized rollers
  • column for indicator
  • gushing finish supplement for stainless scales





Get Leaflet

BEP Platforms

PAINTED ALLOY STEEL OR STAINLESS STEEL


BEP Platforms

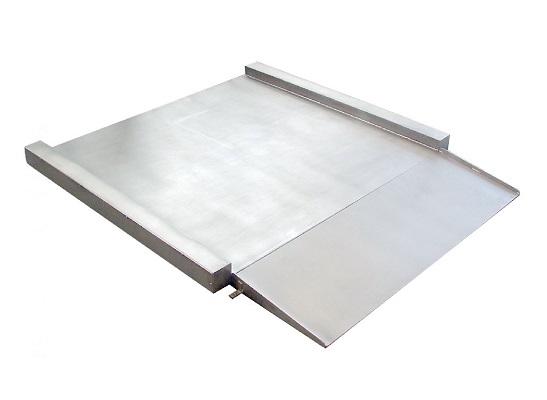

A “drive through” floor platform with four integrated shear beam load cells.

  • height: very low at 50 mm
  • including one or two slope(s)
  • platform sizes 800 x 800 mm up to 2.000 x 1.500 mm
  • weighing capacities from 0 – 300 kg up to 0 – 3.000 kg



Accessories:
  • column for indicator
  • one extra slope
  • gushing finish supplement for stainless scale



Get Leaflet

BMC Platforms

PAINTED ALLOY STEEL, OR STAINLESS STEEL


BMC Range

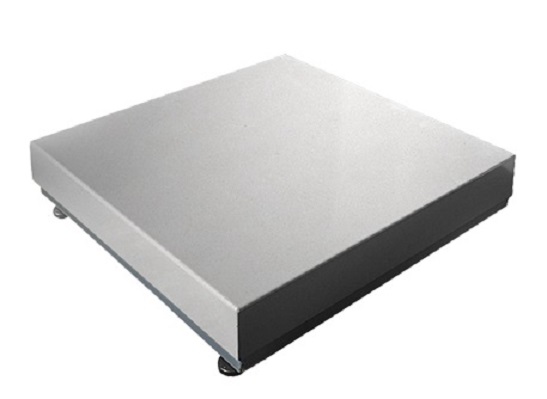

A desktop platform with an integrated singl point load cell.

  • platform sizes 300 x 300mm up to 800 x 800mm
  • weighing capacities 0 – 3 kg tot en met 0 – 600 kg



Accessories:
  • backrest tray of metal sheet in painted steel or in stainless steel
  • double plate, inferior tray for a betterisolation of the cell from exterior environment
  • galvanized rollers
  • column for indicator
  • table cart-load withcolumn and support for the indicator



Get Leaflet

BPP Platforms

BPP Platforms

PAINTED ALLOY STEEL OR STAINLESS STEEL

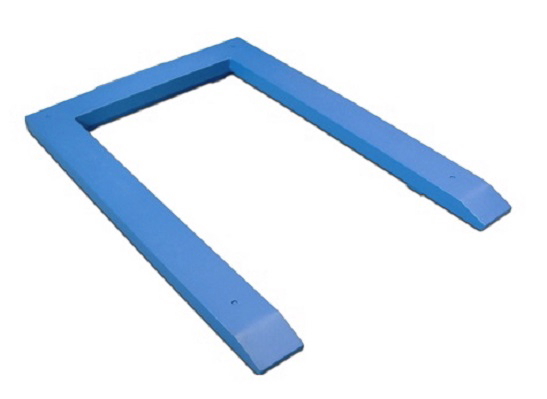

A “pallet weigher” floor platform with four integrated shear beam load cells

  • perfect for Euro pallets
  • height: very low at  80mm
  • platform sizes from 1250 x 850 mm
  • weighing capacities from 0 – 300 kg up to 0 – 3.000 kg



Accessories:
  • column for indicator
  • gushing finish supplement for stainless scales



Get Leaflet

M-MI Platforms

M-MI Platforms

GALVANIZED ALLOY STEEL OR STAINLESS STEEL

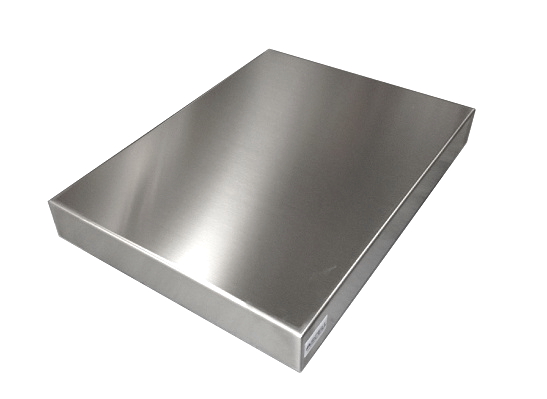

A desktop platform with an integrated single point load cell.

  • material: alloy steel or stainless steel frames and stainless steel cover
  • platform sizes: 150 x 150 mm up to 800 x 800 mm
  • weighing capacities: 0 – 3 kg up to 0 – 1.000 kg



Accessories:
  • column for indicator




Get Leaflet

WPL Range

WPL Platforms

STAINLESS STEEL

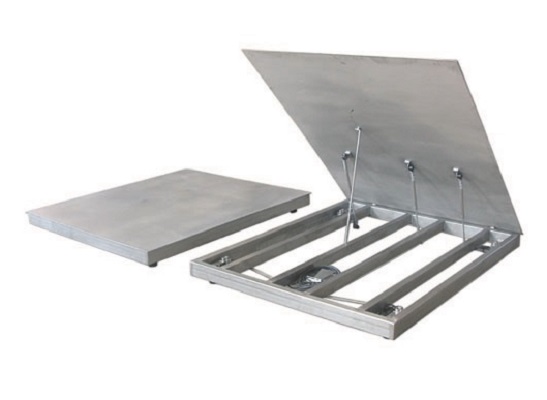

A surface or pit mounted platform with folding plate, supported by inox gas springs to move the plate for easy cleaning of the platform and/or the pit.

  • platform sizes: 800 x 800 mm up to 2000 x 1500 mm
  • weighing capacities: 0 – 300 kg up to 0 – 6.000 kg



Accessories:
  • frame of angular steel shape with root feet to end the building of the ditch
  • column for indicator
  • gushing finish supplement for totally stainless scales



Get Leaflet
