ALLOY STEEL AND STAINLESS STEEL
Type 30901, 31903
- self-adjusting loading assembly
- tension accessory for 300, 355, SB6 and SB8
- ensures the correct load introduction
- range up to 500 kg
ALLOY STEEL

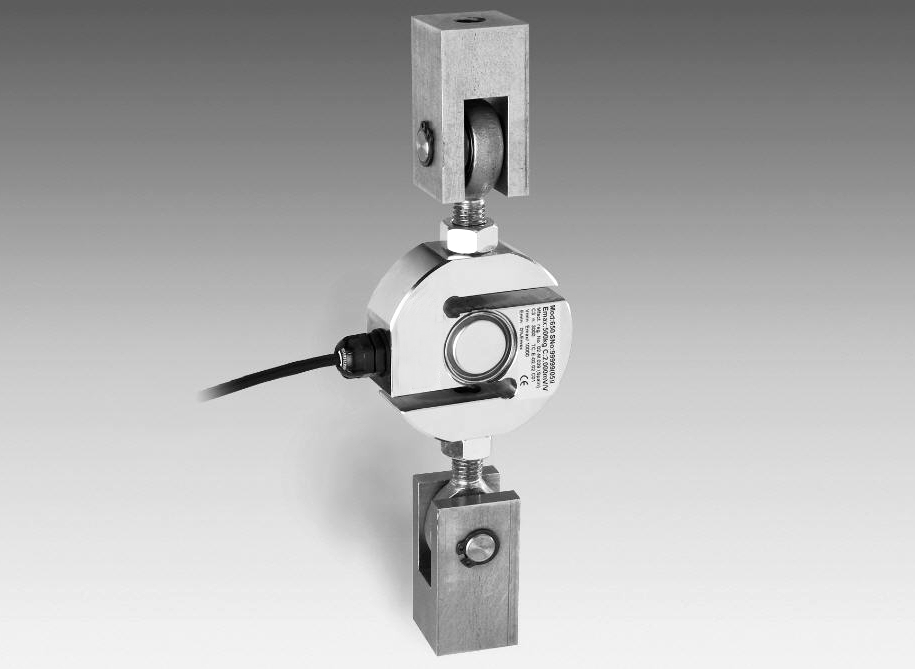

Type TE12,TE20,TE24
- self-adjusting loading assembly consisting of a set of rod end bearings M12, locknuts and forks
- ensures the ideal load introduction
- for load cells type 610, 614, 615, 616, 620, 650, UB1, UB6 and ULB
- range up to 500 kg, 2000 and 7500 kg
ALLOY STEEL

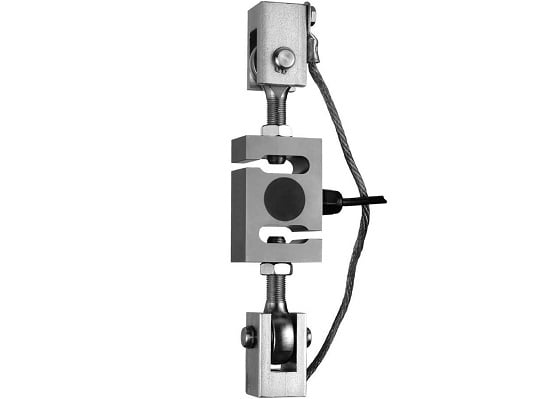

Type 53-04
- self-adjusting loading assembly consisting of a set of rod end bearings, forks and tinned copper braid
- ensures the ideal load introduction to the load cell
- for load cells type 610, 614, 615, 616, 619, 620, 650, UB1 and ULB
- range up to 5000 kg
Download Leaflet
ALLOY STEEL

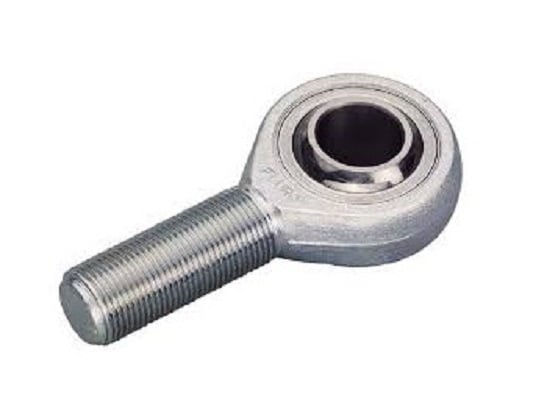

Type Rod End M10
- set of rod end bearings
- guaranteed excellent loading
- for load cells type 610
- range up to 100 kg
ALLOY STEEL
Type Rod End M12
- set of rod end bearings
- guaranteed excellent loading
- for load cells type 610,614, 615, 616, 620, 650, ULB and UB6
- range up to 1000 kg
ALLOY STEEL
Type Rod End M20
- set of rod end bearings
- guaranteed excellent loading
- for load cells type 650 and ULB
- range up to 3000 kg
ALLOY STEEL
Type Rod End M24
- set of rod end bearings
- guaranteed excellent loading
- for load cells type 619, 620, 650, ULB and UB1
- range up to 10 000 kg
