A universal load cell for large industrial applications. The shear is measured in two locations, close to the neutral line of the load cell. This reduces the effects of transverse forces, torque however effects the result. The compact construction eases mounting.
ALLOY STEEL
Type 4158
For tank and silo weighing, for weigh bridges and for heavy duty industry where installation space is confined.
- 10 - 75 Klbs (4536 - 31752 kg) range
- accuracy class to NTEP 10000 IIL, comparable with C3
- protection class IP67
ALLOY STEEL

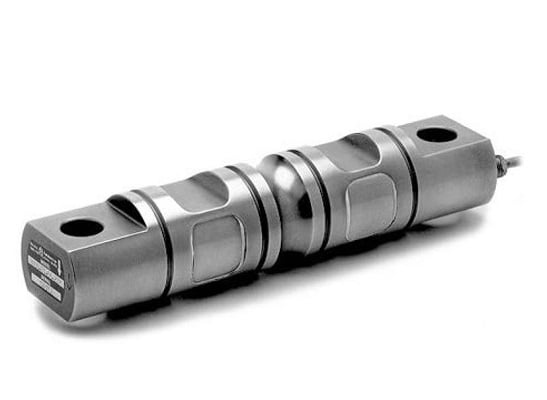

Type 5103
For tank and silo weighing, heavy duty weighbridges, and industrial applications where installation space is confined.
- 2,3 - 113 t range
- accuracy class up to C3
- protection class IP67
ALLOY STEEL

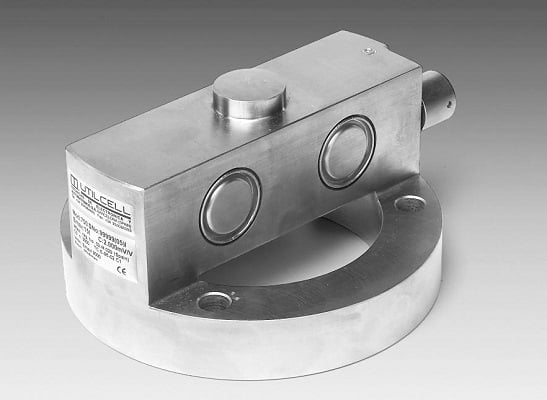

Type 750a
For tank and silo weighing, truck weigh-bridges, and for heavy duty industry where installation space is confined.
- 7500 - 30000 kg range
- accuracy class C4
- protection class IP68
STAINLESS STEEL

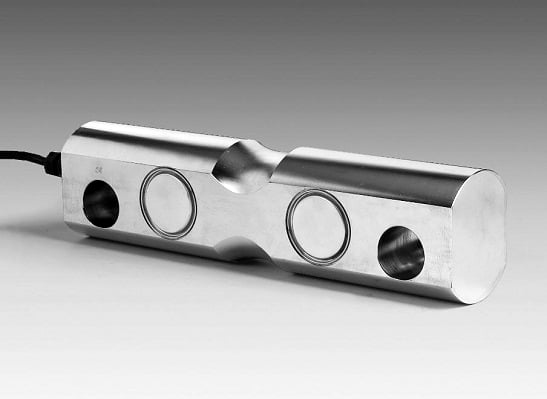

Type 460
For tank and silo weighing, truck weigh-bridges, and for heavy duty industry where installation space is confined.
- 5 - 100 t range
- accuracy class C3
- protection class IP68
STAINLESS STEEL
Type 750i
For tank and silo weighing, truck weigh-bridges, and for heavy duty industry where installation space is confined.
- 7500 -30000 kg range
- accuracy class C4
- protection class IP68
