Hydraulically Damped

Damped single point load cells or center cells in aluminum, steel and stainless steel. These load cells are specially designed for use in weighing systems. They consist out of a single point load cell mounted between friction plates in an enclosure filled with a damping fluid. Additional to the single point characteristics this damping suppresses dynamic effects which facilitates by example the control of moving objects.


ALLOY STEEL

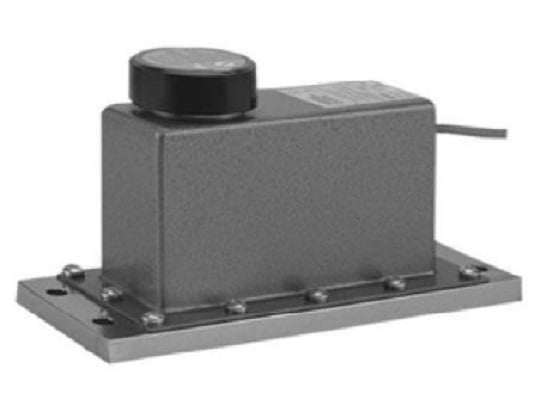

Type 240

Type 240

Ideal for platforms up to 400 x 400 mm in various dynamic applications, such as filling, check weighing and grading.

  • 2 - 50 kg range
  • accuracy class up to C3
  • protection class IP66

Download Leaflet



ALUMINIUM

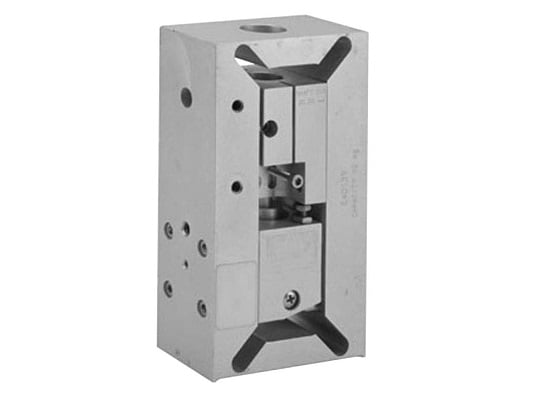

Type 1410

Type 1410

A single point load cell, especially designed for multi-head rotating filling machines. The load cell possesses a unique compensation of centrifugal forces, is insensitive for side forces and has a, application adjustable, hydraulic damping.

  • 10 -30 kg range
  • accuracy class up to  G(tot 3000 d)

    Download Leaflet



ALUMINIUM

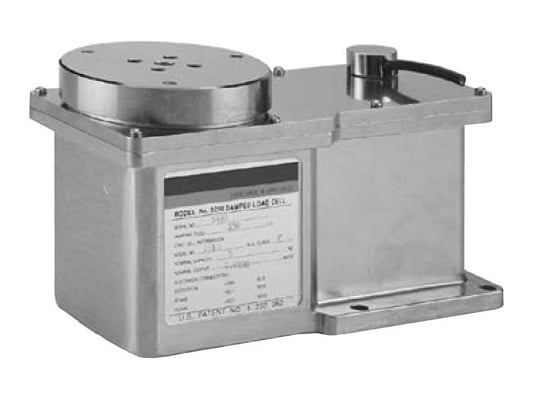

Type 9010

Type 9010

A single point load cell with a unique compensation for high dead loads, overloads and eccentric loads. Together with the hydraulic damping this load cell is the ideal solution for fast and dynamic processes including shock-loading applications

  • 3 kg - 90 kg range
  • accuracy class up to  G(uo to 3000 d)
  • protection class IP65

Download Leaflet



STAINLESS STEEL

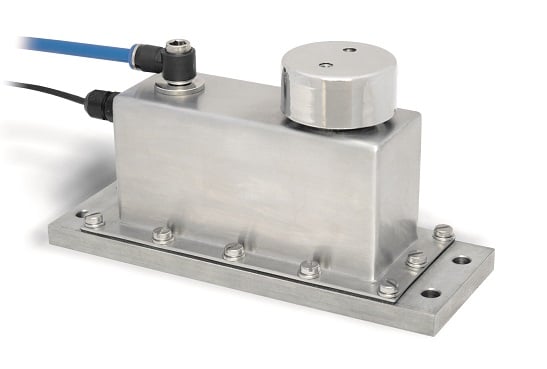

Type 260

Type 260

Ideal for platforms up to 500 x 500 mm in various dynamic applications, such as filling, check weighing and grading.

  • 5 kg - 200kg range
  • accuracy class up to C4
  • protection class IP68

Download Leaflet


STAINLESS STEEL

Type 240

Type 240

Ideal for platforms up to 400 x 400 mm in various dynamic applications, such as filling, check weighing and grading.

  • 2 - 50 kg range
  • accuracy class up to C3
  • protection class IP66

Download Leaflet



STAINLESS  STEEL

Type 9010

Type 9010

A single point load cell with a unique compensation for high dead loads, overloads and eccentric loads. Together with the hydraulic damping this load cell is the ideal solution for fast and dynamic processes including shock-loading applications

  • 3 kg - 90 kg range
  • accuracy class up to G(up to 3000 d)
  • protection class IP65
