Shear beam load cells in aluminum, steel and stainless steel. A universal load cell for bigger industrial applications.
The shear is measured close to the neutral line of the load cell, what reduces the effects of transverse forces. Torque however influences the measuring result. The compact construction eases mounting. Complete platforms including load cells are available as well.
ALLOY STEEL

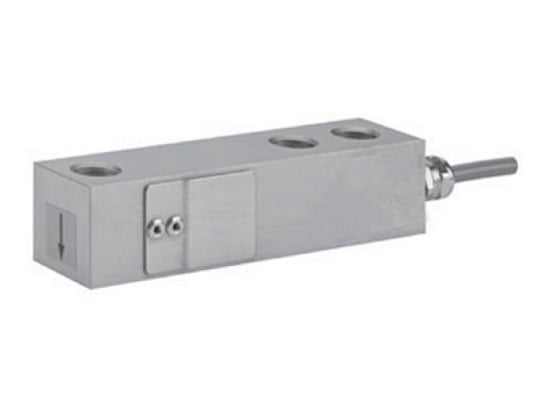

Type 3410
Ideal for multiple load cells, platforms and general purpose.
- 250 kg - 2000 kg range
- accuracy class up to C3
- protection class IP67

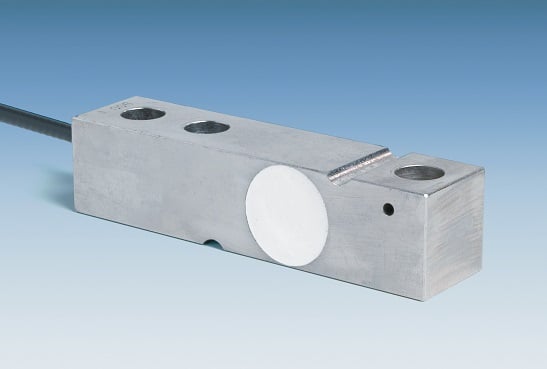

ALLOY STEEL STAINLESS STEEL
Type 350n/350a/350i
Ideal for multiple load cells, platforms and general purpose applications.
- 300 - 5000 kg range; 350n max 2000 kg
- accuracy class C3
- protection class IP66/IP66/IP68
STAINLESS STEEL

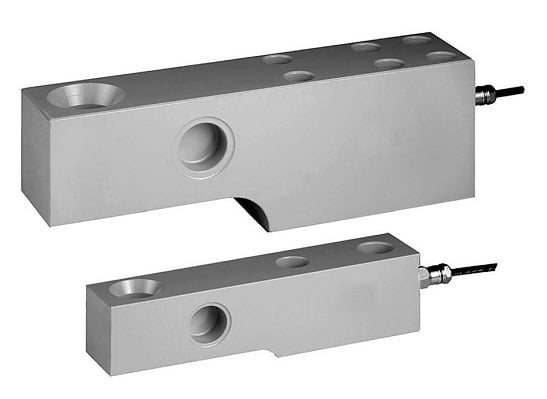

Type SB2
Ideal for multiple load cells, heavy duty and general purpose.
- hygienic
- 20400 – 45400 kg range
- accuracy class up to C3
- protection class IP68
ALUMINUM

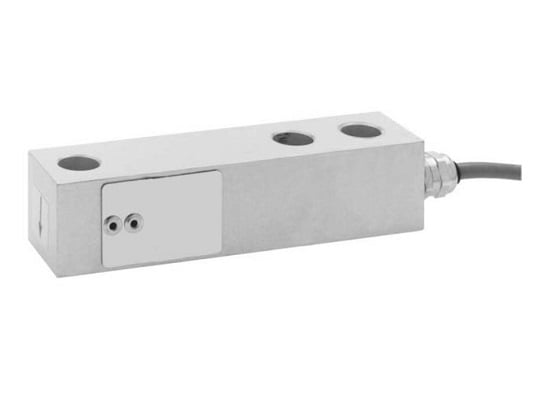

Type 3310
Ideal for multiple load cells, platforms and general purpose applications.
- 250 - 1000 kg range
- accuracy class upto C3
- protection class IP67
STAINLESS STEEL
Type 3411
Ideal for multiple load cells, platforms and general purpose applications.
- 250 - 2000 kg range
- accuracy class up to C3
- protection class IP67
STAINLESS STEEL

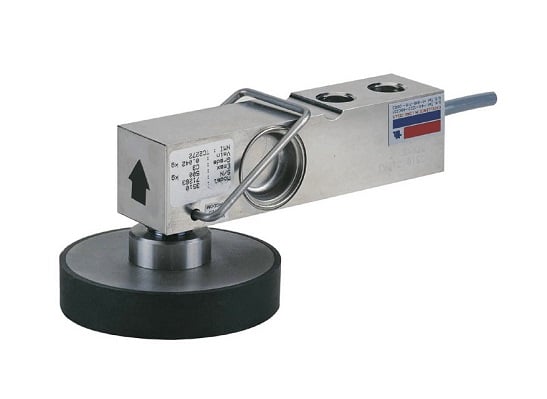

Type 3510
Ideal for multiple load cells, platforms and general purpose.
- hygienic
- 300 - 5000 kg range
- accuracy class up to C6
- protection class IP68
STAINLESS STEEL

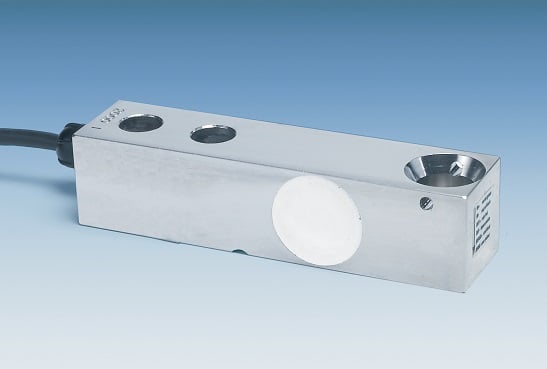

Type 350a/350i T-end
Ideal for multiple load cells, platforms and general purpose applications.
- 300 - 2000 kg range
- accuracy class C3
- protection class IP66/IP68
STAINLESS STEEL

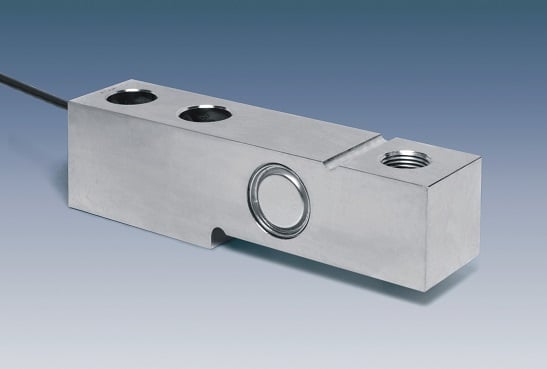

Type 350i
Ideal for multiple load cells, platforms and general purpose applications.
- hygienic
- 7500 - 10 000 kg range
- accuracy class C3
- protection class IP68
STAINLESS STEEL

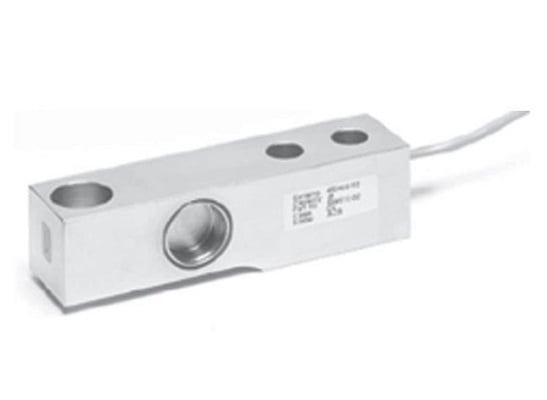

Type ACB
Ideal for multiple load cells, heavy duty and general purpose applications.
- hygienic
- 500 - 5000 kg range
- accuracy class upto C6
- protection class IP66 and IP68
STAINLESS STEEL
Type BK2
Ideal for multiple load cells, platforms and general purpose.
- 200 - 2000 kg range
- accuracy class up to C3
- protection class IP67
STAINLESS STEEL

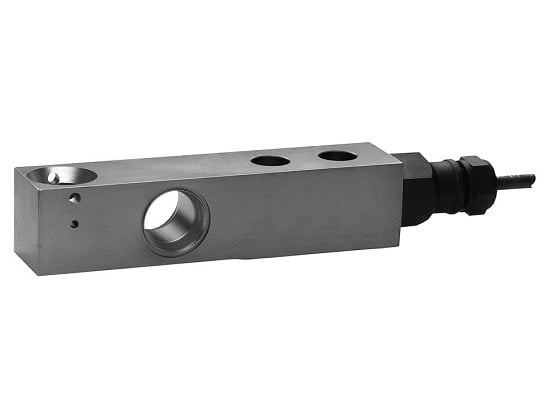

Type SB14
Ideal for multiple load cells, heavy duty and general purpose applications.
- hygienic
- 227 - 4536 kg range
- accuracy class up to C3
- protection class IP68
STAINLESS STEEL

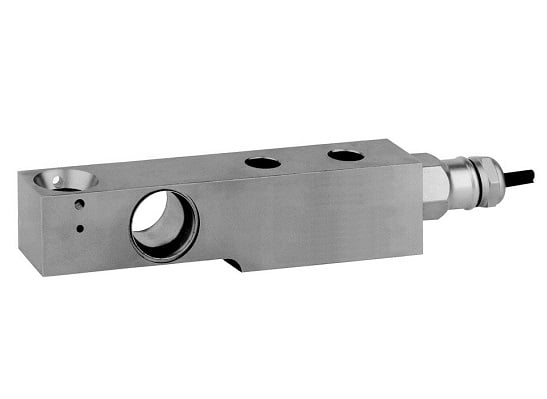

Type SB4
Ideal for multiple load cells, platforms and general purpose.
- hygienic
- 510 – 10197 kg range
- accuracy class up to C4
- protection class IP68
STAINLESS STEEL
Type SB5
Ideal for multiple load cells, platforms and general purpose.
- hygienic
- 510 - 10197 kg range
- accuracy class up to C3
- protection class IP67
STAINLESS STEEL
Type SB9
Ideal for multiple load cells, platforms and general purpose applications.
- 250 - 2000 kg range
- accuracy range up to C3
- protection class IP67
STAINLESS STEEL
Type SLB
Ideal for multiple load cells, platforms and general purpose applications.
- 500 - 5000 kg range
- accuracy range up to C3
- protection class IP67
STAINLESS STEEL

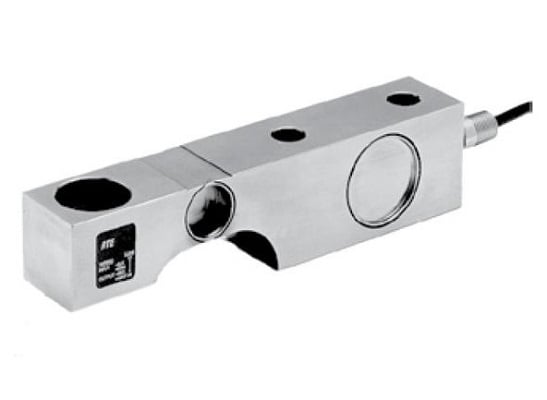

Type SSB
Ideal for multiple load cells, heavy duty and general purpose applications.
- 500 - 10.000 kg range
- accuracy range uo to C4
- protection class IP66 and IP68
