Tension S Beam

A universal load cell for almost any size of industrial applications with a hanging constructions. The essential part consists of an element measuring the bending or shear, depending on the capacity. An s-shaped body with suspension connections is located around the measuring element. Since generally rod-ends with swivel bearings are used, the load cell will adjust itself to the load prevents transverse forces and torque.



ALLOY STEEL

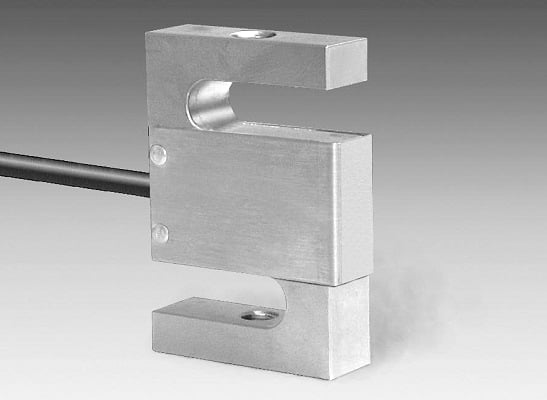

Type 610

Type 610

Ideally suited for hanging scales, force measurement, as safety device for hoists and other industrial applications.

  • 50 - 500 kg range
  • accuracy class C3
  • protection class IP66

Download Leaflet


ALUMINUM

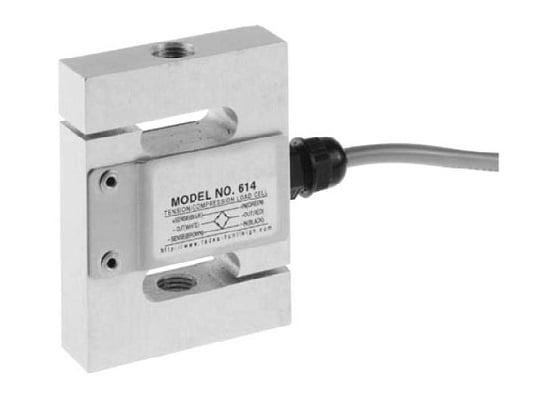

Type 614

Type 614

Ideally suited for lever conversions, hanging scales, force measurement and a wide range of other industrial applications.

  • 50 – 500 kg range
  • accuracy class up to C3
  • protection class IP67

Download Leaflet


ALLOY STEEL

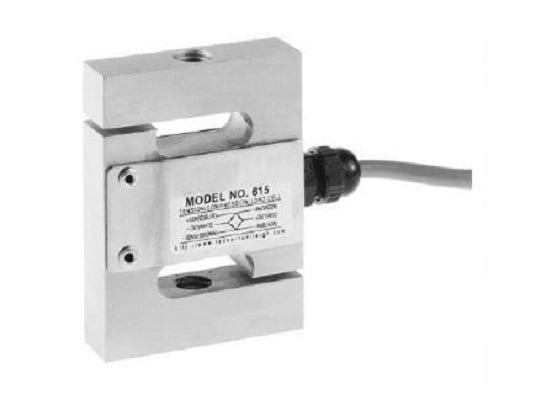

Type 615

Type 615

Ideally suited for lever conversions, hanging scales, force measurement and a wide range of other industrial applications.

  • 50 – 1000 kg range
  • accuracy class up to g
  • protection class IP67

Download Leaflet


ALLOY STEEL

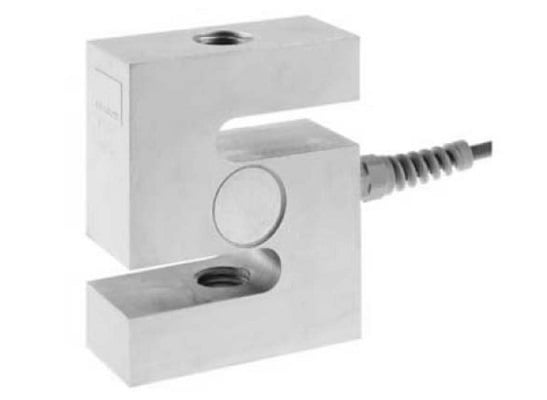

Type 615

Type 619

Ideally suited for hanging scales, force measurement, as safety device for hoists and other industrial applications.

  • 1500 - 6000 kg range
  • accuracy class up to G
  • protection class IP67

Download Leaflet


STAINLESS STEEL

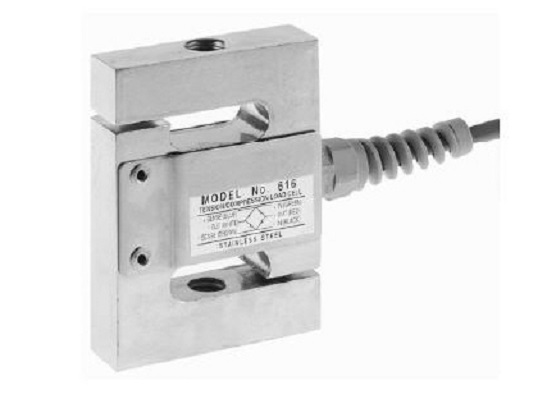

Type 616

Type 616

Ideally suited for lever conversions, hanging scales, force measurement and a wide range of other industrial applications.

  • 100 – 1000 kg range
  • accuracy class up to G
  • protection class IP67

Download Leaflet


STAINLESS STEEL

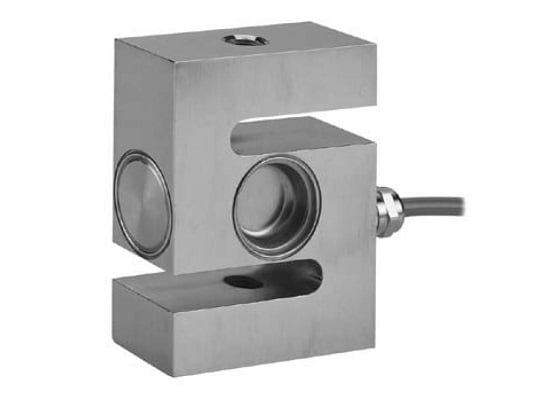

Type 620

Type 620

Applications in harsh environments include hybrid scales, hopper weighing, belt weighers, dynamometers, material testing machines, vibratory feeding equipment.

  • 500 – 5000 kg range
  • accuracy class up to C3
  • protection class IP68

Download Leaflet


STAINLESS STEEL

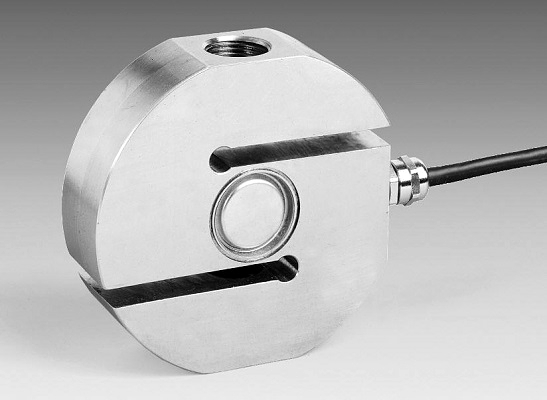

Type 650

Type 650

Ideal for hybrid constructions, hanging scales, force measuring and a variety of hygienic applications.

  • 250 - 7500 kg range
  • accuracy class C3
  • protection class IP68

Download Leaflet


STAINLESS STEEL

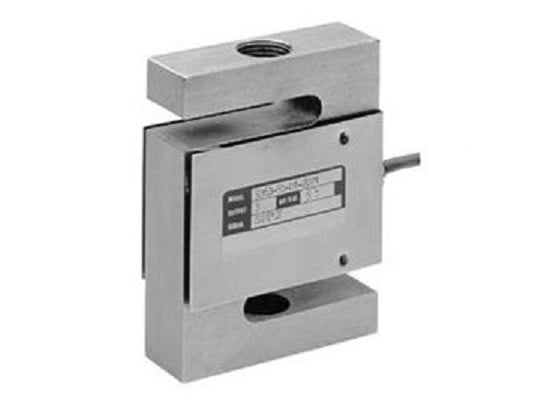

Type 9363

Type 9363

Ideal for suspended hoppers, overhead track scales, force measurements, belt scales and also process weighing applications.

  • 50 - 10000 kg range
  • accuracy class up to C3
  • protection class IP67

Download Leaflet


STAINLESS STEEL

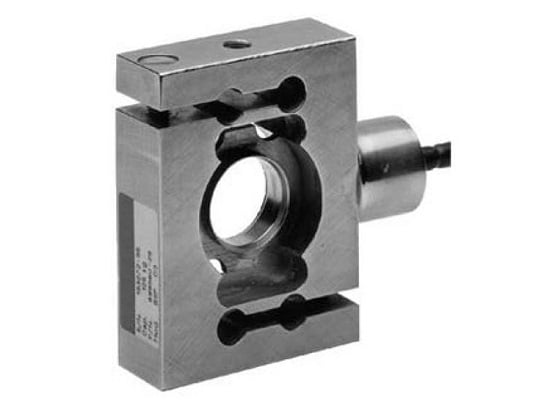

Type BSP

Type BSP

Ideal for hybrid scales, process weighing,belt checkweighers, dynamometers.

  • 50 - 5000 kg range
  • accuracy class up to C3
  • protection class IP66 and IP68

Download Leaflet


STAINLESS STEEL

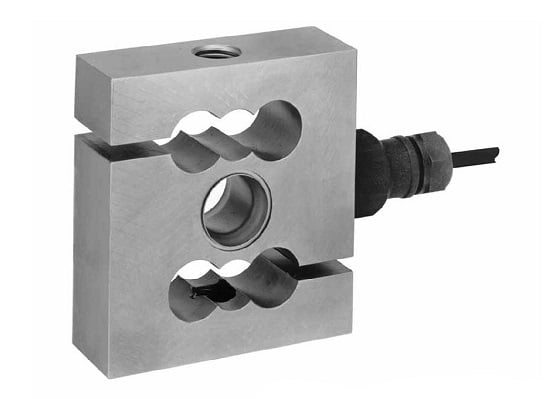

Type UB1

Type UB1

For application in harsh environments including crane scales and hanging scales, hopper and tankweighing systems,
hybrid systems with lever work, belt weighers and other load carriers with multiple  load cells.

  • 1020  – 5099 kg range
  • accuracy class up to C3
  • protection class IP68

Download Leaflet


STAINLESS STEEL

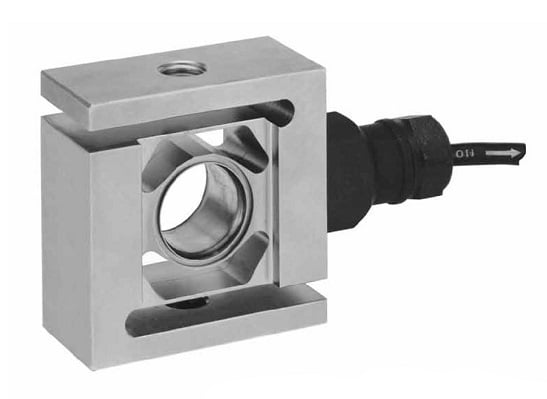

Type UB6

Type UB6

For application in harsh environments including crane scales and hanging scales, hopper and tank weighing systems,
hybrid systems with lever work, belt weighers and other load carriers with multiple  load cells.

  • 102 – 510kg range
  • accuracy class up to C3
  • protection class IP68

Download Leaflet


STAINLESS STEEL

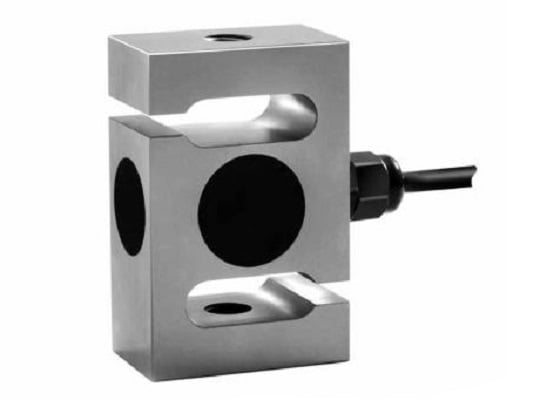

Type ULB

Type ULB

For application including crane scales and hanging scales, hopper and tank weighing systems,
hybrid systems with lever work, belt weighers and other load carriers with multiple  load cells.

  • 100– 5000 kg range
  • accuracy class up to C3
  • protection class IP67

Download Leaflet


ALLOY STEEL

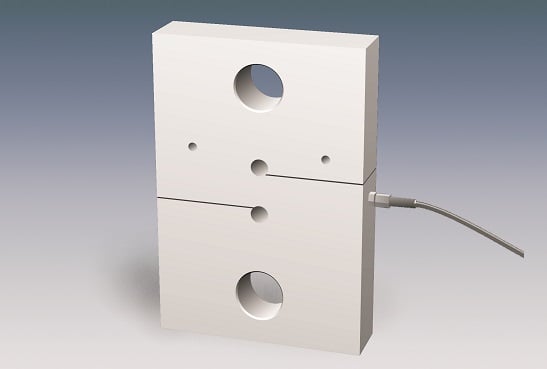

Type 530

Type 530

Ideally suited for hanging scales, force measurement, as safety device for hoists and other industrial applications.

  • 20 000 and 25000 kg range
  • accuracy class C2
  • protection class IP66

Download Leaflet


ALLOY STEEL

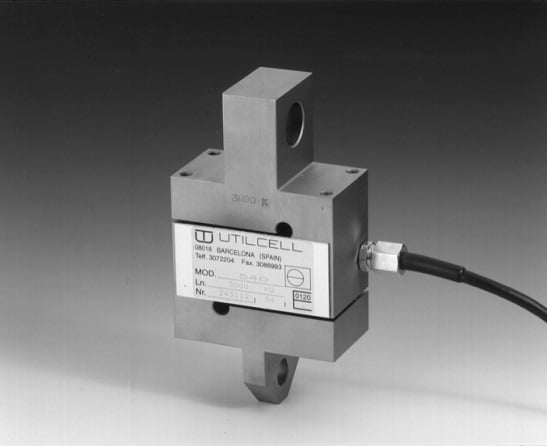

Type 540

Type 540

For application including crane scales and hanging scales, hopper and tank weighing systems,
hybrid systems with lever work, belt weighers and other load carriers with multiple  load cells.

  • 2000 – 10 000 kg range
  • accuracy class C3
  • protection class IP66

Download Leaflet
